Tugas Pendahuluan

​

[KEMBALI KE MENU SEBELUMNYA]

DAFTAR ISI

1. Kondisi

2. Gambar Rangkaian Simulasi

3. Flowchart

4. Listing Program

5. Video Simulasi

6. Link Download

1. Kondisi [Kembali]

             Bila suhu yang terbaca pada lcd menunnjukkan suhu kisaran 25-30 derajat celsius maka 2 led berwarna merah dan hijau akan hidup

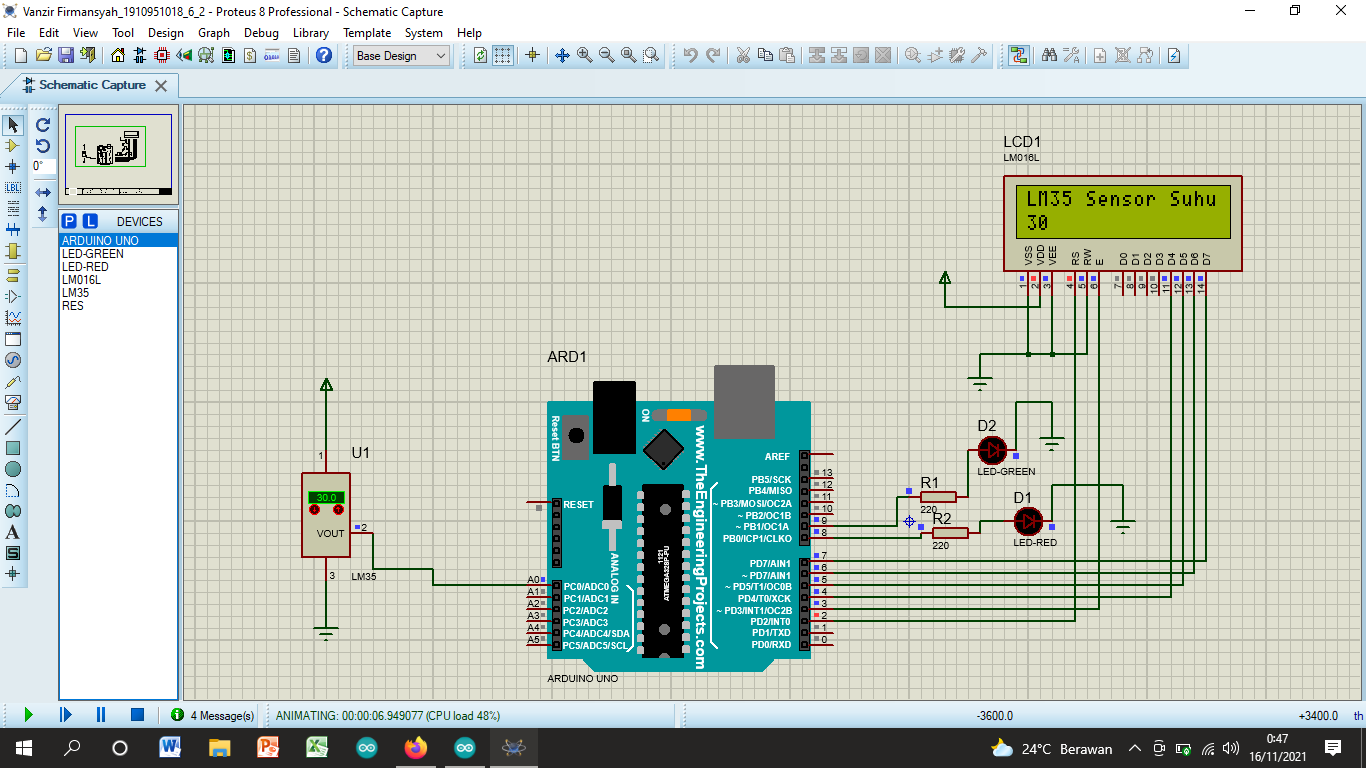

2. Gambar Rangkaian Simulasi [Kembali]

3. Flowchart [Kembali]



4. Listing Program [Kembali]

#include <LiquidCrystal.h>
#define LM35 A0
LiquidCrystal lcd(2,3,4,5,6,7);
int nilaiSuhu;
int LED1 = 8;
int LED2 = 9;

void setup() {
pinMode(A0, INPUT);
lcd.begin(16,2);
pinMode (LED1,OUTPUT);
pinMode (LED2,OUTPUT);
}

void loop()
{

nilaiSuhu=((5*analogRead(LM35)*100.00)/1024);


if (nilaiSuhu > 25 && nilaiSuhu <30) {
digitalWrite (LED1,HIGH);
digitalWrite (LED2,HIGH);
lcd.clear();
lcd.setCursor(0,0);
lcd.print("LM35 Sensor Suhu");
lcd.setCursor(0,1);
lcd.print(nilaiSuhu);
delay(100);
}
else {
digitalWrite (LED1,LOW);
digitalWrite (LED2,LOW);
lcd.clear();
lcd.setCursor(0,0);
lcd.print("LM35 Sensor Suhu");
lcd.setCursor(0,1);
lcd.print(nilaiSuhu);
delay(100);
}
}

5. Video Simulasi [Kembali]

6. Link Download [Kembali]

       1. Video Simulasi
       2. Gambar Rangkaian

       3. File Rangkaian Proteus

       4. Listing Program
